Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm

Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm

$97.18
Skip to product information
Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
  • Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
  • Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
  • Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
  • Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
  • Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
  • Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
  • Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
  • Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
  • Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
  • Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
  • Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
  • Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
  • Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
  • Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm
Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm

Paint Thickness Gauge for Cars, Coating Thickness Meter 0-2000μm

$97.18

About this item

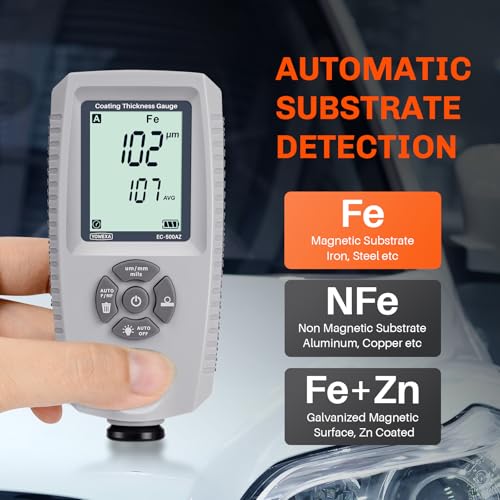

  • Coating Thickness Gauge with Fe/NFe/Fe+Zn Detection: AUTO mode distinguishes ferrous, non-ferrous and iron-galvanized substrates. F and N modes are available when the substrate type is known.

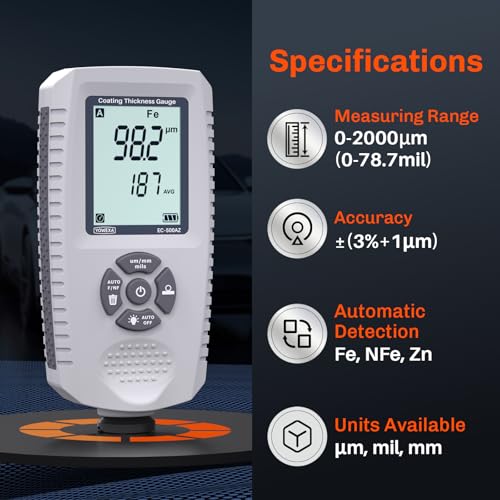

  • 0-2000μm Paint Thickness Meter: Measures coatings with ±(3% of reading + 1μm) accuracy, 0.1μm resolution from 0-100μm and 1μm above 100μm. Switch among μm, mm and mil for automotive coating checks.
  • Car Paint Thickness Tester for Used-Car Checks: Compare supported metal panels for coating-thickness differences. Fe+Zn recognition covers 3-500μm; a flashing Fe indication flags suspected iron putty within 0-1000μm.

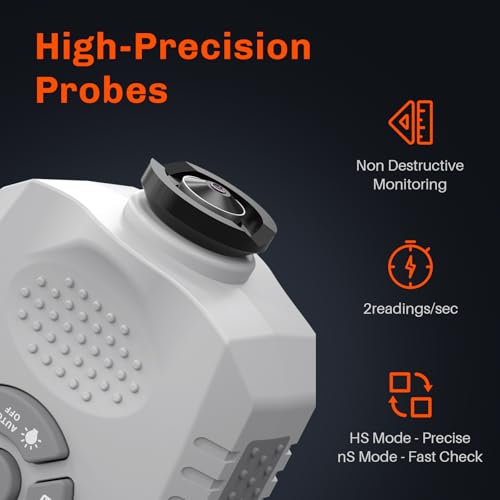

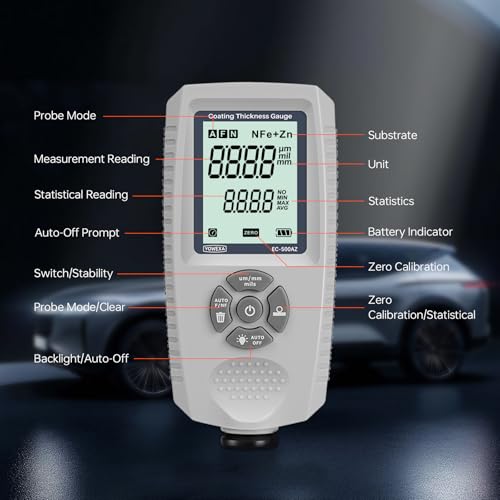

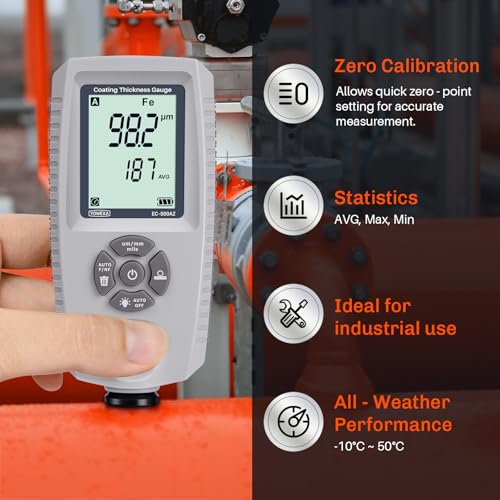

  • Fast Readings and Statistics: Take up to 2 readings per second, use HS mode for steadier values or nS mode for more responsive changes, and review AVG, MAX, MIN and reading count on the backlit display.
  • Metal-Substrate Limits: The ruby probe measures supported coatings only when a metal substrate is present. Minimum substrate thickness: Fe 0.30mm, NFe 0.05mm; minimum measurement area: 15mm diameter. Not for coating-thickness measurement on wood, plastic, glass, or other non-metal substrates.
  • Portable & Durable: Compact, lightweight design with a sturdy probe for reliable performance in diverse environments. Perfect for automotive and industrial professionals who need a portable coating thickness meter.
