POWERTEC 2PK Toggle Clamp, 1000 lbs Holding Capacity, 334 Adjustable 90 Degree Vertical U Bolt Latch w/Antislip Hand Grip for Woodworking Jigs & Fixtures, Smoker, Tire Carrier, Cabinet (20309-P2) - size: 334, 2PK
$23.15
Skip to product information
POWERTEC 2PK Toggle Clamp, 1000 lbs Holding Capacity, 334 Adjustable 90 Degree Vertical U Bolt Latch w/Antislip Hand Grip for Woodworking Jigs & Fixtures, Smoker, Tire Carrier, Cabinet (20309-P2) - size: 334, 2PK
$23.15
About this item

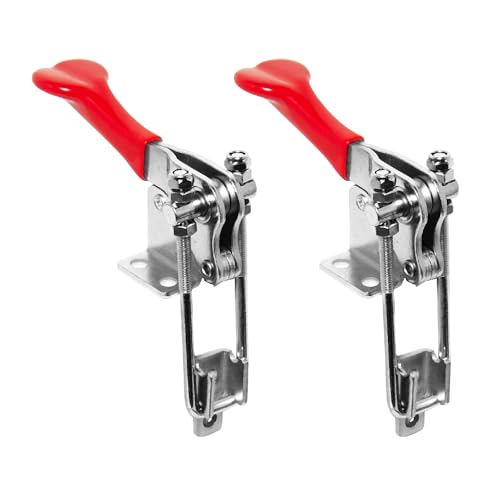

- INCLUDES: (2) Toggle Latch Clamp complete with Adjustable U Bolt (Type-334)
- FUNCTION: For use on 90 degree applications where a vertical or corner latch is required , also works with 71416 Toggle Clamp Mounting Plate & POWERTEC T Track for woodworking projects (Note: for t-tracks that accept 1/4” hex head bolts and 5/16" t-bolts)

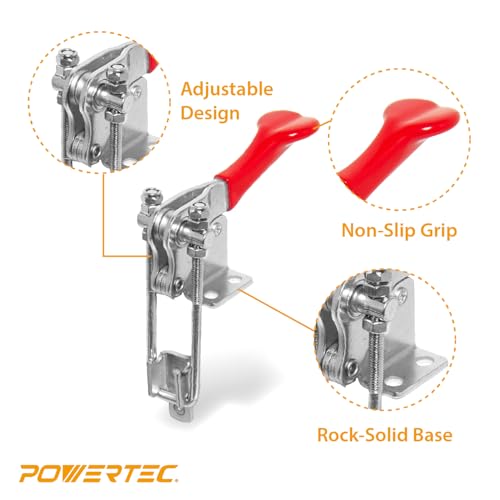

- PREMIUM DESIGN: Features a red anti-slip vinyl hand grip and is constructed out of cold rolled steel - wisely coated with high quality zinc plating for anti-rust, corrosion free and long lasting durability

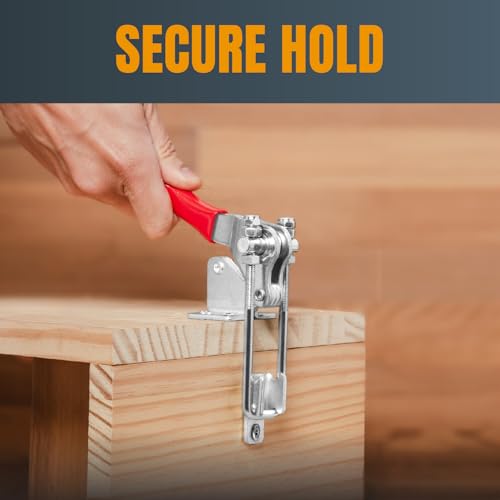

- HEAVY DUTY: Toggle latch locking design allows you to instantly lock and release your workpiece while ensuring that you can accurately adjust the mounting distance and clamping force
- HOLDING CAPACITY: 454 kg /1000 lbs

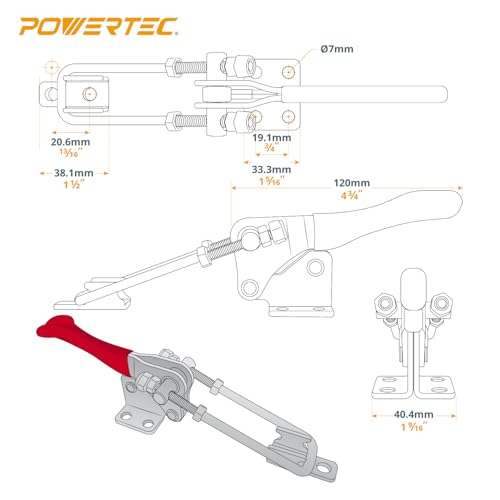

- SPECS: Clamp base: 1-5/16” x 1-9/16”| Mounting holes: 1/4” spaced 3/4” x 1-1/16” apart| Latch pate: 11/16” x 1-1/2”| Mounting holes: 1/4” spaced 3/4”. 15/64” U bolt: 1-1/4” x 4-1/2”. Threaded U bolt adjusts 1”| Clamp height when clamped: 2-3/4”| Length of base, including handle, when clamped: 4-7/8”
Overview
- Material: steel
- Brand: POWERTEC
- Item dimensions L x W x H: 7 x 6 x 4 inches
- Color: Red
- Style: 334, 2PK
- Item Weight: 0.58 kg
- Tensile Strength: 1000 pounds
- UPC: 843441114093
- Number of Items: 1
- Set Name: POWERTEC 2PK Toggle Clamp Set
