Woodhaven 8668 Jig for SOSS 218 Invisible Hinge, Made in USA - size: 8668: SOSS 218
$106.90
Skip to product information
Woodhaven 8668 Jig for SOSS 218 Invisible Hinge, Made in USA - size: 8668: SOSS 218
$106.90
About this item
- SPECIFICALLY FOR SOSS 218 HINGE: Cuts the exact 1-1/8" wide x 4-5/8" long shallow mortise and matching deep mortise required by the SOSS 218 invisible hinge.

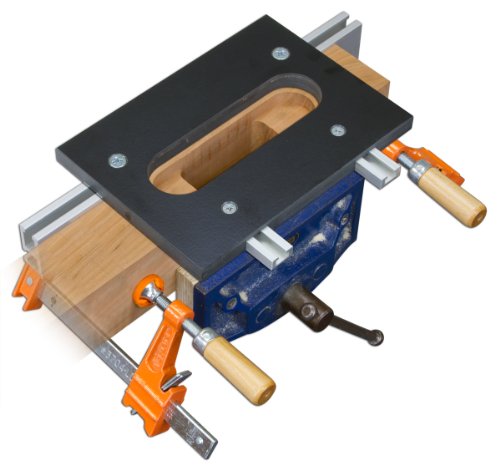

- ONE-POSITION ROUTING: Clamp once and rout both depths without moving the jig, built-in retractable stops control the depth of each cut automatically.
- REQUIRES 5032K BUSHING & 15410 BIT: Use with Woodhaven 5032K (3/4" OD bushing) and Woodhaven 15410 (1/2" spiral upcut, 2" cut length), both sold separately. Third-party bushing nose must not exceed 3/8" length.
- BUILT-IN SOSS SETBACK: Hinge setback machined to SOSS 218 manufacturer specifications for correct, repeatable hinge installation without additional measuring.
- MADE IN THE USA WITH LIFETIME GUARANTEE: Backed by Woodhaven's lifetime guarantee against defects in materials and workmanship.
Overview
- Material: Phenolic
- Brand: Woodhaven
- Product Dimensions: 7.75"L x 5.88"W
- Finish Type: Unfinished
- Mounting Type: Face Mount
- Hole Count: 4
- Unit Count: 1 Count
- Color: Black
- Number of Items: 1
- Manufacturer: Woodhaven
